SOLUTION In a question such as this, it’s wise to
draw two diagrams: one of the three-dimensional solid and another of the
plane region \(D\) over which it lies.

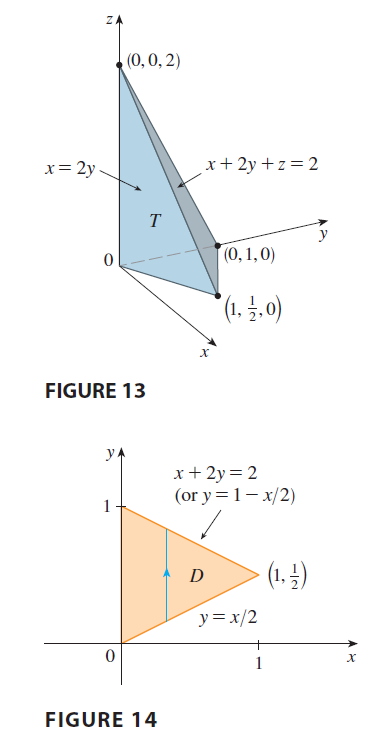

Figure 13 shows the tetrahedron \(T\)
bounded by the coordinate planes \(x = 0, z =
0\), the vertical plane \(x =
2y\), and the plane \(x + 2y + z =
2\). Since the plane \(x + 2y + z =
2\) intersects the \(xy\)-plane
(whose equation is \(z = 0\)) in the
line \(x + 2y = 2\), we see that \(T\) lies above the triangular region \(D\) in the \(xy\)-plane bounded by the lines \(x = 2y, x + 2y = 2,\) and \(x = 0\). (See Figure 14.) The plane \(x + 2y + z = 2\) can be written as \(z = 2 - x - 2y\), so the required volume
lies under the graph of the function \(z = 2 -
x - 2y\) and above \[
D = \{(x, y) | 0 \le x \le 1, x/2 \le y \le 1 - x/2\}
\] Therefore \[
V = \iint_D (2 - x - 2y) dA = \int_0^1 \int_{x/2}^{1-x/2} (2 - x - 2y)
dy dx
\] \[
= \int_0^1 [2y - xy - y^2]_{y=x/2}^{y=1-x/2} dx
\] \[
= \int_0^1 \left[ 2(1 - \frac{x}{2}) - x(1 - \frac{x}{2}) - (1 -
\frac{x}{2})^2 - (x - \frac{x^2}{2} - \frac{x^2}{4}) \right] dx
\] \[
= \int_0^1 (x^2 - 2x + 1) dx = \left[ \frac{x^3}{3} - x^2 + x
\right]_0^1 = \frac{1}{3}
\]
